t_pxjbox Struct Reference
[MSP]

Header for any ui signal processing object. More...

#include <z_dsp.h>

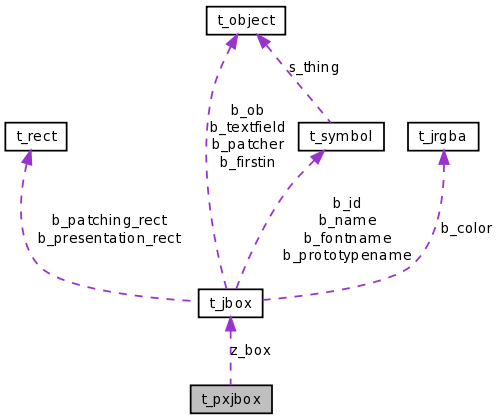

Collaboration diagram for t_pxjbox:

Data Fields
t_jbox	z_box
	The box struct used by all ui objects.
long	z_disabled
	set to non-zero if this object is muted (using the pcontrol or mute~ objects)
short	z_count
	an array that indicates what inlets/outlets are connected with signals
short	z_misc
	flags (bitmask) determining object behaviour, such as Z_NO_INPLACE, Z_PUT_FIRST, or Z_PUT_LAST

Detailed Description

Header for any ui signal processing object.

For non-ui objects use t_pxobject.

Definition at line 425 of file z_dsp.h.

The documentation for this struct was generated from the following file:
