jit.qt.record Module
[Jitter]

Collaboration diagram for jit.qt.record Module:

Functions
t_jit_err	jit_qt_record_matrix_calc (t_jit_qt_record *x, void *inputs, void *outputs)
	matrix_calc method for the jit.qt.record object
t_jit_qt_record *	jit_qt_record_new (long width, long height)
	Constructs instance of t_jit_qt_record.

---

Function Documentation

t_jit_err jit_qt_record_matrix_calc	(	t_jit_qt_record *	x,
		void *	inputs,
		void *	outputs
	)

matrix_calc method for the jit.qt.record object

Parameters:

	x	t_jit_qt_record object pointer
	inputs	input list (should be or contain 1 t_jit_matrix object)
	outputs	output list (unused)

Returns:

t_jit_err error code

Warning:

This function is not exported, but is provided for reference when calling via jit_object_method on an instance of a t_jit_qt_movie object.

Definition at line 720 of file jit.qt.record.c.

References t_jit_matrix_info::dim, t_jit_matrix_info::dimstride, jit_gworld_can_coerce_matrix(), jit_gworld_matrix_equal_dim(), JIT_MATRIX_CONVERT_DSTDIM, JIT_MATRIX_CONVERT_INTERP, JIT_MATRIX_CONVERT_SRCDIM, jit_object_attach(), jit_object_findregisteredbyptr(), jit_object_method(), jit_object_notify(), and qelem_set().

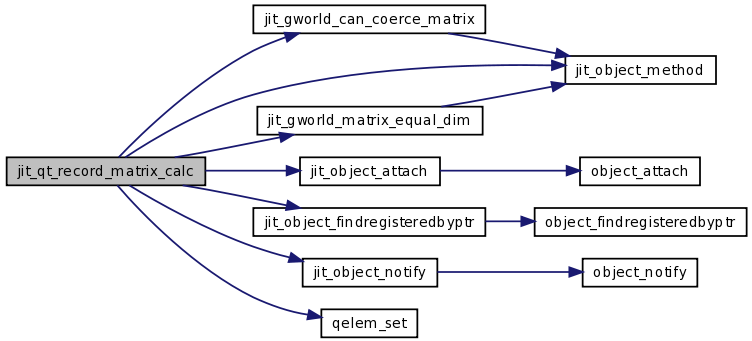

Here is the call graph for this function:

t_jit_qt_record * jit_qt_record_new	(	long	width,
		long	height
	)

Constructs instance of t_jit_qt_record.

Parameters:

	width	output matrix width
	height	output matrix height

Returns:

t_jit_qt_record object pointer

Warning:

This function is not exported, but is provided for reference when calling via jit_object_new.

Definition at line 1541 of file jit.qt.record.c.

References freeobject(), gensym(), jit_matrix_info_default(), jit_object_new(), qelem_new(), and systhread_mutex_new().

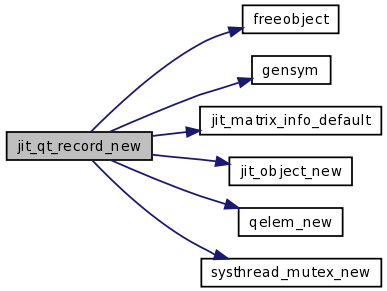

Here is the call graph for this function:
