Max 5 API Reference

MOP Module
[Jitter]

Collaboration diagram for MOP Module:

Data Structures

struct  t_jit_mop_io
 t_jit_mop_io object struct. More...
struct  t_jit_mop
 t_jit_mop object struct. More...

Functions

t_jit_object * jit_mop_io_new (void)
 Constructs instance of t_jit_mop_io.
t_jit_object * jit_mop_io_newcopy (t_jit_mop_io *x)
 Constructs instance of t_jit_mop_io, copying settings of input.
t_jit_err jit_mop_io_free (t_jit_mop *x)
 Frees instance of t_jit_mop_io.
t_jit_err jit_mop_io_restrict_type (t_jit_mop_io *x, t_jit_matrix_info *info)
 Restricts the type specified in t_jit_matrix_info struct to those permitted by t_jit_mop_io instance, overwriting value in t_jit_matrix_info struct.
t_jit_err jit_mop_io_restrict_planecount (t_jit_mop_io *x, t_jit_matrix_info *info)
 Restricts the planecount specified in t_jit_matrix_info struct to those permitted by t_jit_mop_io instance, overwriting value in t_jit_matrix_info struct.
t_jit_err jit_mop_io_restrict_dim (t_jit_mop_io *x, t_jit_matrix_info *info)
 Restricts the dimension sizes specified in t_jit_matrix_info struct to those permitted by t_jit_mop_io instance, overwriting value in t_jit_matrix_info struct.
t_jit_err jit_mop_io_matrix (t_jit_mop_io *x, void *m)
 Sets the internal matrix reference.
void * jit_mop_io_getmatrix (t_jit_mop_io *x)
 Retrieves the internal matrix reference.
t_jit_err jit_mop_io_ioproc (t_jit_mop_io *x, method ioproc)
 Sets the I/O procedure used when handling incoming matrices.
method jit_mop_io_getioproc (t_jit_mop_io *x)
 Retrieves the I/O procedure used when handling incoming matrices.
t_jit_object * jit_mop_new (long inputcount, long outputcount)
 Constructs instance of t_jit_mop.
t_jit_object * jit_mop_newcopy (t_jit_mop *x)
 Constructs instance of t_jit_mop, copying settings of input.
void * jit_mop_getinput (t_jit_mop *x, long i)
 Retrieves input at input list index specified.
void * jit_mop_getoutput (t_jit_mop *x, long i)
 Retrieves output at output list index specified.
void * jit_mop_getinputlist (t_jit_mop *x)
 Retrieves input list.
void * jit_mop_getoutputlist (t_jit_mop *x)
 Retrieves output list.
t_jit_err jit_mop_free (t_jit_mop *x)
 Frees instance of t_jit_mop.
t_jit_err jit_mop_single_type (void *mop, t_symbol *s)
 Utility function to set the type attribute for all MOP inputs and outputs.
t_jit_err jit_mop_single_planecount (void *mop, long c)
 Utility function to set the planecount attribute for all MOP inputs and outputs.
t_jit_err jit_mop_methodall (void *mop, t_symbol *s,...)
 Utility function to send the same method to all MOP inputs and outputs.
t_jit_err jit_mop_input_nolink (void *mop, long c)
 Utility function to disable all linking attributes for a MOP input.
t_jit_err jit_mop_output_nolink (void *mop, long c)
 Utility function to disable all linking attributes for a MOP output.
t_jit_err jit_mop_ioproc_copy_adapt (void *mop, void *mop_io, void *matrix)
 MOP I/O procedure to copy and adapt to input.
t_jit_err jit_mop_ioproc_copy_trunc (void *mop, void *mop_io, void *matrix)
 MOP I/O procedure to copy, but truncate input.
t_jit_err jit_mop_ioproc_copy_trunc_zero (void *mop, void *mop_io, void *matrix)
 MOP I/O procedure to copy, but truncate input.
t_symbol * jit_mop_ioproc_tosym (void *ioproc)
 Utility to convert MOP I/O procedure function to a human-readable type name.

Function Documentation

t_jit_err jit_mop_free ( t_jit_mop *  x  )

Frees instance of t_jit_mop.

Parameters:
x t_jit_mop object pointer
Returns:
t_jit_err error code
Warning:
Use jit_object_free instead.

Definition at line 720 of file jit.mop.c.

References t_jit_mop::inputlist, jit_object_free(), and t_jit_mop::outputlist.

Here is the call graph for this function:

void * jit_mop_getinput ( t_jit_mop *  x,
long  i
)

Retrieves input at input list index specified.

Parameters:
x t_jit_mop object pointer
i index
Returns:
t_jit_mop_io object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop.

Definition at line 637 of file jit.mop.c.

References t_jit_mop::inputlist, and jit_object_method().

Here is the call graph for this function:

void * jit_mop_getinputlist ( t_jit_mop *  x  )

Retrieves input list.

Parameters:
x t_jit_mop object pointer
Returns:
t_jit_linklist object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop.

Definition at line 680 of file jit.mop.c.

References t_jit_mop::inputlist.

void * jit_mop_getoutput ( t_jit_mop *  x,
long  i
)

Retrieves output at output list index specified.

Parameters:
x t_jit_mop object pointer
i index
Returns:
t_jit_mop_io object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop.

Definition at line 659 of file jit.mop.c.

References jit_object_method(), and t_jit_mop::outputlist.

Here is the call graph for this function:

void * jit_mop_getoutputlist ( t_jit_mop *  x  )

Retrieves output list.

Parameters:
x t_jit_mop object pointer
Returns:
t_jit_linklist object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop.

Definition at line 701 of file jit.mop.c.

References t_jit_mop::outputlist.

t_jit_err jit_mop_input_nolink ( void *  mop,
long  c
)

Utility function to disable all linking attributes for a MOP input.

Parameters:
mop t_jit_mop object pointer
c input index
Returns:
t_jit_err error code

Definition at line 915 of file jit.mop.c.

References gensym(), t_jit_mop::inputlist, jit_attr_setlong(), and jit_object_method().

Here is the call graph for this function:

t_jit_err jit_mop_io_free ( t_jit_mop *  x  )

Frees instance of t_jit_mop_io.

Parameters:
x t_jit_mop_io object pointer
Returns:
t_jit_err error code
Warning:
Use jit_object_free instead.

Definition at line 296 of file jit.mop.c.

method jit_mop_io_getioproc ( t_jit_mop_io *  x  )

Retrieves the I/O procedure used when handling incoming matrices.

Parameters:
x t_jit_mop_io object pointer
Returns:
I/O procedure
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop_io.

Definition at line 492 of file jit.mop.c.

References t_jit_mop_io::ioproc.

void * jit_mop_io_getmatrix ( t_jit_mop_io *  x  )

Retrieves the internal matrix reference.

Parameters:
x t_jit_mop_io object pointer
Returns:
t_jit_matrix object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop_io.

Definition at line 454 of file jit.mop.c.

References t_jit_mop_io::matrix.

t_jit_err jit_mop_io_ioproc ( t_jit_mop_io *  x,
method  ioproc
)

Sets the I/O procedure used when handling incoming matrices.

Parameters:
x t_jit_mop_io object pointer
ioproc I/O procedure
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop_io.

Definition at line 473 of file jit.mop.c.

References t_jit_mop_io::ioproc.

t_jit_err jit_mop_io_matrix ( t_jit_mop_io *  x,
void *  m
)

Sets the internal matrix reference.

Parameters:
x t_jit_mop_io object pointer
m t_jit_matrix object pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop_io.

Definition at line 435 of file jit.mop.c.

References t_jit_mop_io::matrix.

t_jit_object * jit_mop_io_new ( void   )

Constructs instance of t_jit_mop_io.

Returns:
t_jit_mop_io object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_new.

Definition at line 227 of file jit.mop.c.

References t_jit_mop_io::dimlink, gensym(), t_jit_mop_io::ioname, t_jit_mop_io::ioproc, JIT_MATRIX_MAX_DIMCOUNT, JIT_MATRIX_MAX_PLANECOUNT, t_jit_mop_io::matrix, t_jit_mop_io::matrixname, t_jit_mop_io::maxdim, t_jit_mop_io::maxdimcount, t_jit_mop_io::maxplanecount, t_jit_mop_io::mindim, t_jit_mop_io::mindimcount, t_jit_mop_io::minplanecount, t_jit_mop_io::planelink, t_jit_mop_io::special, t_jit_mop_io::typelink, t_jit_mop_io::types, and t_jit_mop_io::typescount.

Here is the call graph for this function:

t_jit_object * jit_mop_io_newcopy ( t_jit_mop_io *  x  )

Constructs instance of t_jit_mop_io, copying settings of input.

Parameters:
x t_jit_mop_io object pointer
Returns:
t_jit_mop_io object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop_io.

Definition at line 274 of file jit.mop.c.

t_jit_err jit_mop_io_restrict_dim ( t_jit_mop_io *  x,
t_jit_matrix_info *  info
)

Restricts the dimension sizes specified in t_jit_matrix_info struct to those permitted by t_jit_mop_io instance, overwriting value in t_jit_matrix_info struct.

Parameters:
x t_jit_mop_io object pointer
info t_jit_matrix_info pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop_io.

Definition at line 381 of file jit.mop.c.

References t_jit_matrix_info::dim, t_jit_matrix_info::dimcount, JIT_MATRIX_MAX_DIMCOUNT, MAX, t_jit_mop_io::maxdim, t_jit_mop_io::maxdimcount, t_jit_mop_io::mindim, and t_jit_mop_io::mindimcount.

t_jit_err jit_mop_io_restrict_planecount ( t_jit_mop_io *  x,
t_jit_matrix_info *  info
)

Restricts the planecount specified in t_jit_matrix_info struct to those permitted by t_jit_mop_io instance, overwriting value in t_jit_matrix_info struct.

Parameters:
x t_jit_mop_io object pointer
info t_jit_matrix_info pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop_io.

Definition at line 351 of file jit.mop.c.

References CLIP, t_jit_mop_io::maxplanecount, t_jit_mop_io::minplanecount, and t_jit_matrix_info::planecount.

t_jit_err jit_mop_io_restrict_type ( t_jit_mop_io *  x,
t_jit_matrix_info *  info
)

Restricts the type specified in t_jit_matrix_info struct to those permitted by t_jit_mop_io instance, overwriting value in t_jit_matrix_info struct.

Parameters:
x t_jit_mop_io object pointer
info t_jit_matrix_info pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop_io.

Definition at line 317 of file jit.mop.c.

References jit_attr_getsym(), t_jit_mop_io::matrix, t_jit_matrix_info::type, t_jit_mop_io::types, and t_jit_mop_io::typescount.

Here is the call graph for this function:

t_jit_err jit_mop_ioproc_copy_adapt ( void *  mop,
void *  mop_io,
void *  matrix
)

MOP I/O procedure to copy and adapt to input.

Parameters:
mop t_jit_mop object pointer
mop_io t_jit_mop_io object pointer
matrix t_jit_matrix object pointer
Returns:
t_jit_err error code
    void *m;
    t_jit_matrix_info info;

    if (matrix&&(m=jit_object_method(mop_io,_jit_sym_getmatrix))) {
        jit_object_method(matrix,_jit_sym_getinfo,&info);
        jit_object_method(mop_io,_jit_sym_restrict_type,&info);
        jit_object_method(mop_io,_jit_sym_restrict_dim,&info);
        jit_object_method(mop_io,_jit_sym_restrict_planecount,&info);
        jit_object_method(m,_jit_sym_setinfo,&info);
        jit_object_method(m,_jit_sym_frommatrix,matrix,NULL);
    }

    return JIT_ERR_NONE;

Definition at line 984 of file jit.mop.c.

References jit_object_method().

Referenced by jit_mop_ioproc_tosym().

Here is the call graph for this function:

t_jit_err jit_mop_ioproc_copy_trunc ( void *  mop,
void *  mop_io,
void *  matrix
)

MOP I/O procedure to copy, but truncate input.

Parameters:
mop t_jit_mop object pointer
mop_io t_jit_mop_io object pointer
matrix t_jit_matrix object pointer
Returns:
t_jit_err error code
    void *m;
    t_jit_matrix_info info;

    if (matrix&&(m=jit_object_method(mop_io,_jit_sym_getmatrix))) {
        jit_object_method(m,_jit_sym_frommatrix_trunc,matrix);
    }

    return JIT_ERR_NONE;

Definition at line 1024 of file jit.mop.c.

References jit_object_method().

Referenced by jit_mop_ioproc_tosym().

Here is the call graph for this function:

t_jit_err jit_mop_ioproc_copy_trunc_zero ( void *  mop,
void *  mop_io,
void *  matrix
)

MOP I/O procedure to copy, but truncate input.

Zero elsewhere.

Parameters:
mop t_jit_mop object pointer
mop_io t_jit_mop_io object pointer
matrix t_jit_matrix object pointer
Returns:
t_jit_err error code
    void *m;
    t_jit_matrix_info info;

    if (matrix&&(m=jit_object_method(mop_io,_jit_sym_getmatrix))) {
        jit_object_method(m,_jit_sym_clear);
        jit_object_method(m,_jit_sym_frommatrix_trunc,matrix);
    }

    return JIT_ERR_NONE;

Definition at line 1059 of file jit.mop.c.

References jit_object_method().

Referenced by jit_mop_ioproc_tosym().

Here is the call graph for this function:

t_symbol* jit_mop_ioproc_tosym ( void *  ioproc  )

Utility to convert MOP I/O procedure function to a human-readable type name.

Parameters:
ioproc t_jit_mop_io procedure pointer
Returns:
t_symbol pointer
 if (ioproc==NULL) {
 return ps_resamp;
 } else if (ioproc==jit_mop_ioproc_copy_adapt) {
 return ps_adapt;
 } else if (ioproc==jit_mop_ioproc_copy_trunc) {
 return ps_trunc;
 } else if (ioproc==jit_mop_ioproc_copy_trunc_zero) {
 return ps_trunc_zero;
 } else {
 return ps_custom;
 }
 return ps_resamp;

Definition at line 1098 of file jit.mop.c.

References jit_mop_ioproc_copy_adapt(), jit_mop_ioproc_copy_trunc(), and jit_mop_ioproc_copy_trunc_zero().

Here is the call graph for this function:

t_jit_err jit_mop_methodall ( void *  mop,
t_symbol *  s,
  ...
)

Utility function to send the same method to all MOP inputs and outputs.

Parameters:
mop t_jit_mop object pointer
s method symbol
... untyped arguments
Returns:
t_jit_err error code

Definition at line 883 of file jit.mop.c.

References t_jit_mop::inputcount, t_jit_mop::inputlist, jit_object_method(), t_jit_mop::outputcount, and t_jit_mop::outputlist.

Here is the call graph for this function:

t_jit_object * jit_mop_new ( long  inputcount,
long  outputcount
)

Constructs instance of t_jit_mop.

Returns:
t_jit_mop object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_new.

Definition at line 516 of file jit.mop.c.

References t_jit_mop::adapt, t_jit_mop::caninplace, gensym(), t_jit_mop::inputcount, t_jit_mop::inputlist, jit_attr_setsym(), jit_object_free(), jit_object_method(), jit_object_new(), t_jit_mop::outputcount, t_jit_mop::outputlist, t_jit_mop::outputmode, and t_jit_mop::special.

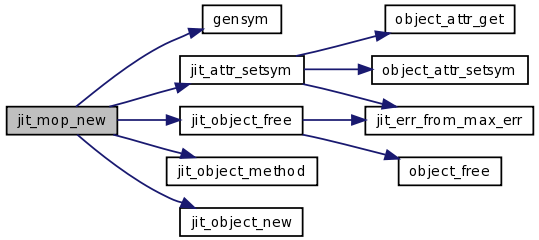

Here is the call graph for this function:

t_jit_object * jit_mop_newcopy ( t_jit_mop *  x  )

Constructs instance of t_jit_mop, copying settings of input.

Parameters:
x t_jit_mop object pointer
Returns:
t_jit_mop object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_mop.

Definition at line 580 of file jit.mop.c.

References gensym(), t_jit_mop::inputcount, t_jit_mop::inputlist, jit_object_free(), jit_object_method(), jit_object_new(), t_jit_mop::outputcount, and t_jit_mop::outputlist.

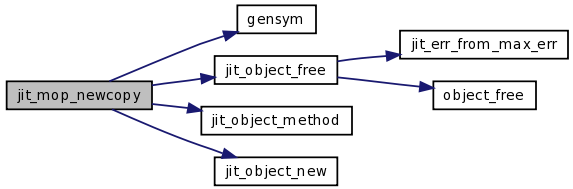

Here is the call graph for this function:

t_jit_err jit_mop_output_nolink ( void *  mop,
long  c
)

Utility function to disable all linking attributes for a MOP output.

Parameters:
mop t_jit_mop object pointer
c output index
Returns:
t_jit_err error code

Definition at line 941 of file jit.mop.c.

References gensym(), jit_attr_setlong(), jit_object_method(), and t_jit_mop::outputlist.

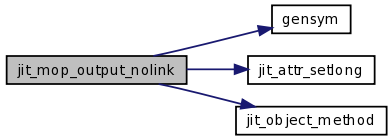

Here is the call graph for this function:

t_jit_err jit_mop_single_planecount ( void *  mop,
long  c
)

Utility function to set the planecount attribute for all MOP inputs and outputs.

Parameters:
mop t_jit_mop object pointer
c planecount
Returns:
t_jit_err error code

Definition at line 848 of file jit.mop.c.

References gensym(), t_jit_mop::inputcount, t_jit_mop::inputlist, jit_attr_setlong(), jit_object_method(), t_jit_mop::outputcount, and t_jit_mop::outputlist.

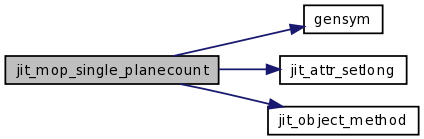

Here is the call graph for this function:

t_jit_err jit_mop_single_type ( void *  mop,
t_symbol *  s
)

Utility function to set the type attribute for all MOP inputs and outputs.

Parameters:
mop t_jit_mop object pointer
s type symbol
Returns:
t_jit_err error code

Definition at line 814 of file jit.mop.c.

References gensym(), t_jit_mop::inputcount, t_jit_mop::inputlist, jit_atom_setsym(), jit_object_method(), t_jit_mop::outputcount, and t_jit_mop::outputlist.

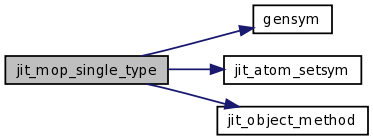

Here is the call graph for this function:

Copyright © 2008, Cycling '74
