Max 5 API Reference

Matrix Module
[Jitter]

Collaboration diagram for Matrix Module:

Functions

void jit_linklist_free (t_jit_linklist *x)
 Frees instance of t_jit_linklist.
void * jit_matrix_new (t_jit_matrix_info *info)
 Constructs instance of t_jit_matrix.
void * jit_matrix_newcopy (t_jit_matrix *copyme)
 Constructs instance of t_jit_matrix, copying from input.
t_jit_err jit_matrix_free (t_jit_matrix *x)
 Frees instance of t_jit_matrix.
t_jit_err jit_matrix_setinfo (t_jit_matrix *x, t_jit_matrix_info *info)
 Sets all attributes according to the t_jit_matrix_info struct provided.
t_jit_err jit_matrix_setinfo_ex (t_jit_matrix *x, t_jit_matrix_info *info)
 Sets all attributes according to the t_jit_matrix_info struct provided (including data flags).
t_jit_err jit_matrix_getinfo (t_jit_matrix *x, t_jit_matrix_info *info)
 Retrieves all attributes, copying into the t_jit_matrix_info struct provided.
t_jit_err jit_matrix_getdata (t_jit_matrix *x, void **data)
 Retrieves matrix data pointer.
t_jit_err jit_matrix_data (t_jit_matrix *x, void *data)
 Sets matrix data pointer.
t_jit_err jit_matrix_freedata (t_jit_matrix *x)
 Frees matrix's internal data pointer if an internal reference and sets to NULL.
t_jit_err jit_matrix_info_default (t_jit_matrix_info *info)
 Initializes matrix info struct to default values.
t_jit_err jit_matrix_clear (t_jit_matrix *x)
 Sets all cells in matrix to the zero.
t_jit_err jit_matrix_setcell1d (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Sets cell at index to the value provided.
t_jit_err jit_matrix_setcell2d (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Sets cell at index to the value provided.
t_jit_err jit_matrix_setcell3d (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Sets cell at index to the value provided.
t_jit_err jit_matrix_setplane1d (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Sets plane of cell at index to the value provided.
t_jit_err jit_matrix_setplane2d (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Sets plane of cell at index to the value provided.
t_jit_err jit_matrix_setplane3d (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Sets plane of cell at index to the value provided.
t_jit_err jit_matrix_setcell (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Sets cell at index to the value provided.
t_jit_err jit_matrix_getcell (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv, long *rac, t_atom **rav)
 Gets cell at index to the value provided.
t_jit_err jit_matrix_setall (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Sets all cells to the value provided.
t_jit_err jit_matrix_togworld (t_jit_matrix *x, GWorldPtr gp, t_gworld_conv_info *gcinfo)
 Copies Jitter matrix data to GWorld data.
t_jit_err jit_matrix_fromgworld (t_jit_matrix *x, GWorldPtr gp, t_gworld_conv_info *gcinfo)
 Copies Jitter matrix data from GWorld data.
t_jit_err jit_matrix_frommatrix (t_jit_matrix *dst_matrix, t_jit_matrix *src_matrix, t_matrix_conv_info *mcinfo)
 Copies Jitter matrix data from another matrix.
t_jit_err jit_matrix_op (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Applies unary or binary operator to matrix See Jitter user documentation for more information.
t_jit_err jit_matrix_exprfill (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Fills cells according to the jit.expr expression provided.
t_jit_err jit_matrix_jit_gl_texture (t_jit_matrix *x, t_symbol *s, long argc, t_atom *argv)
 Copies texture information to matrix.

Function Documentation

void jit_linklist_free ( t_jit_linklist *  x  )

Frees instance of t_jit_linklist.

Parameters:
x t_jit_linklist object pointer
Returns:
t_jit_err error code
Warning:
Use jit_object_free instead.

Definition at line 65 of file jit.linklist.c.

References jit_linklist_clear().

Here is the call graph for this function:

t_jit_err jit_matrix_clear ( t_jit_matrix *  x  )

Sets all cells in matrix to the zero.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 839 of file jit.matrix.c.

t_jit_err jit_matrix_data ( t_jit_matrix *  x,
void *  data
)

Sets matrix data pointer.

Parameters:
x t_jit_matrix object pointer
data data pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 739 of file jit.matrix.c.

t_jit_err jit_matrix_exprfill ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Fills cells according to the jit.expr expression provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 3725 of file jit.matrix.c.

References A_SYM, t_atom::a_type, t_matrix_conv_info::flags, jit_atom_getlong(), jit_atom_getsym(), jit_attr_setsym(), jit_matrix_getinfo(), jit_matrix_new(), jit_object_free(), jit_object_method(), jit_object_new(), t_jit_matrix_info::planecount, t_matrix_conv_info::planemap, and t_jit_matrix_info::type.

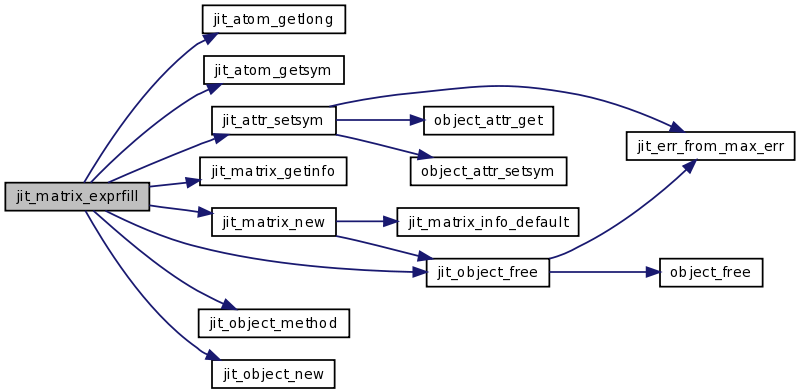

Here is the call graph for this function:

t_jit_err jit_matrix_free ( t_jit_matrix *  x  )

Frees instance of t_jit_matrix.

Parameters:
x t_jit_matrix object pointer
Returns:
t_jit_err error code
Warning:
Use jit_object_free instead.

Definition at line 362 of file jit.matrix.c.

References jit_handle_free(), JIT_MATRIX_DATA_HANDLE, JIT_MATRIX_DATA_REFERENCE, and jit_matrix_freedata().

Here is the call graph for this function:

t_jit_err jit_matrix_freedata ( t_jit_matrix *  x  )

Frees matrix's internal data pointer if an internal reference and sets to NULL.

Parameters:
x t_jit_matrix object pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 776 of file jit.matrix.c.

References jit_freebytes(), and JIT_MATRIX_DATA_REFERENCE.

Referenced by jit_matrix_free().

Here is the call graph for this function:

t_jit_err jit_matrix_fromgworld ( t_jit_matrix *  x,
GWorldPtr  gp,
t_gworld_conv_info *  gcinfo
)

Copies Jitter matrix data from GWorld data.

Parameters:
x t_jit_matrix object pointer
gp gworld pointer
gcinfo conversion information pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 2220 of file jit.matrix.c.

References CLIP, JIT_MATRIX_CONVERT_DSTDIM, JIT_MATRIX_CONVERT_INTERP, JIT_MATRIX_CONVERT_SRCDIM, and MIN.

t_jit_err jit_matrix_frommatrix ( t_jit_matrix *  dst_matrix,
t_jit_matrix *  src_matrix,
t_matrix_conv_info *  mcinfo
)

Copies Jitter matrix data from another matrix.

Parameters:
dst_matrix destination t_jit_matrix object pointer
src_matrix destination t_jit_matrix object pointer
mcinfo conversion information pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 2817 of file jit.matrix.c.

References t_jit_matrix_info::dim, t_jit_matrix_info::dimcount, t_matrix_conv_info::dstdimend, t_matrix_conv_info::dstdimstart, t_matrix_conv_info::flags, JIT_MATRIX_CONVERT_DSTDIM, JIT_MATRIX_CONVERT_SRCDIM, jit_object_method(), MAX, t_jit_matrix_info::size, t_matrix_conv_info::srcdimend, and t_matrix_conv_info::srcdimstart.

Here is the call graph for this function:

t_jit_err jit_matrix_getcell ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv,
long *  rac,
t_atom **  rav
)

Gets cell at index to the value provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
rac return value atom count
rav return value atom vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 1265 of file jit.matrix.c.

References jit_atom_getlong(), jit_atom_setfloat(), jit_atom_setlong(), jit_atom_setobj(), jit_atom_setsym(), and jit_getbytes().

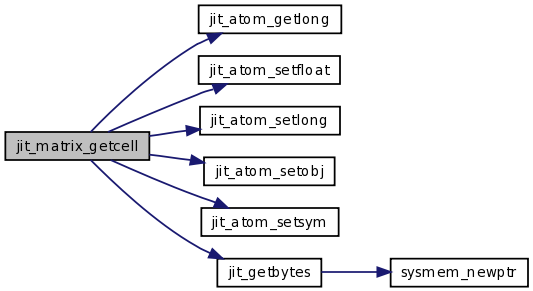

Here is the call graph for this function:

t_jit_err jit_matrix_getdata ( t_jit_matrix *  x,
void **  data
)

Retrieves matrix data pointer.

Parameters:
x t_jit_matrix object pointer
data pointer to data pointer (set to NULL if matrix is not available)
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 715 of file jit.matrix.c.

t_jit_err jit_matrix_getinfo ( t_jit_matrix *  x,
t_jit_matrix_info *  info
)

Retrieves all attributes, copying into the t_jit_matrix_info struct provided.

Parameters:
x t_jit_matrix object pointer
info t_jit_matrix_info pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 682 of file jit.matrix.c.

Referenced by jit_matrix_exprfill(), and jit_matrix_op().

t_jit_err jit_matrix_info_default ( t_jit_matrix_info *  info  )

Initializes matrix info struct to default values.

Parameters:
info t_jit_matrix_info struct pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 802 of file jit.matrix.c.

References t_jit_matrix_info::dim, t_jit_matrix_info::dimcount, t_jit_matrix_info::dimstride, t_jit_matrix_info::flags, t_jit_matrix_info::planecount, t_jit_matrix_info::size, and t_jit_matrix_info::type.

Referenced by jit_glchunk_grid_new(), jit_glchunk_new(), jit_matrix_new(), jit_qt_movie_new(), jit_qt_record_new(), max_jit_mop_inputs(), max_jit_mop_matrix_args(), and max_jit_mop_outputs().

t_jit_err jit_matrix_jit_gl_texture ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Copies texture information to matrix.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 3785 of file jit.matrix.c.

References jit_atom_getsym(), jit_atom_setobj(), jit_object_findregistered(), and jit_object_method().

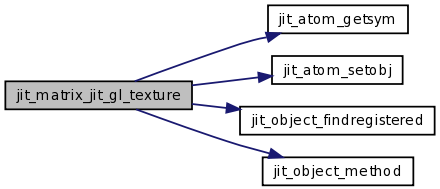

Here is the call graph for this function:

void * jit_matrix_new ( t_jit_matrix_info *  info  )

Constructs instance of t_jit_matrix.

Parameters:
info t_jit_matrix_info struct pointer
Returns:
t_jit_matrix object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_new.

Definition at line 223 of file jit.matrix.c.

References t_jit_matrix_info::flags, JIT_MATRIX_DATA_FLAGS_USE, JIT_MATRIX_DATA_HANDLE, JIT_MATRIX_DATA_REFERENCE, jit_matrix_info_default(), and jit_object_free().

Referenced by jit_matrix_exprfill(), and jit_matrix_op().

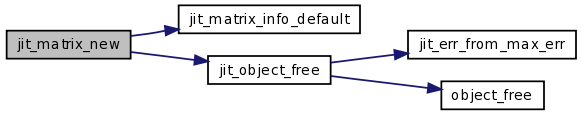

Here is the call graph for this function:

void * jit_matrix_newcopy ( t_jit_matrix *  copyme  )

Constructs instance of t_jit_matrix, copying from input.

Parameters:
copyme t_jit_matrix object pointer
Returns:
t_jit_matrix object pointer
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 269 of file jit.matrix.c.

References JIT_MATRIX_DATA_REFERENCE, and jit_object_free().

Here is the call graph for this function:

t_jit_err jit_matrix_op ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Applies unary or binary operator to matrix See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 3591 of file jit.matrix.c.

References A_FLOAT, A_LONG, A_OBJ, A_SYM, jit_atom_getsym(), jit_attr_setsym(), jit_linklist_append(), jit_linklist_chuck(), jit_linklist_new(), jit_matrix_getinfo(), jit_matrix_new(), jit_matrix_setall(), jit_object_findregistered(), jit_object_free(), jit_object_method(), jit_object_new(), and t_symbol::s_name.

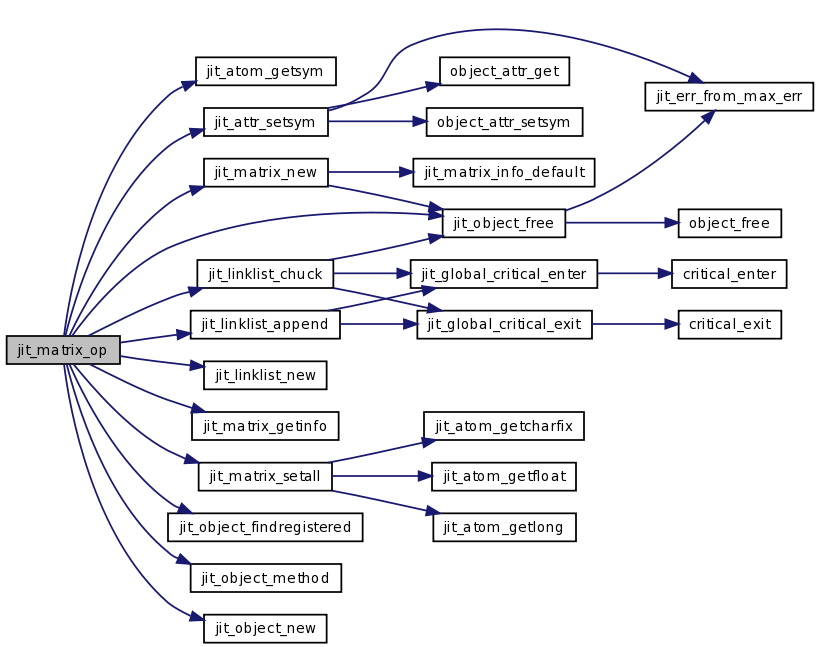

Here is the call graph for this function:

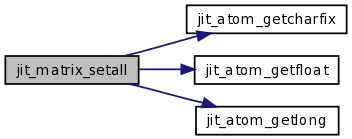

t_jit_err jit_matrix_setall ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Sets all cells to the value provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 1371 of file jit.matrix.c.

References CLIP, jit_atom_getcharfix(), jit_atom_getfloat(), jit_atom_getlong(), and JIT_MATRIX_MAX_PLANECOUNT.

Referenced by jit_matrix_op().

Here is the call graph for this function:

t_jit_err jit_matrix_setcell ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Sets cell at index to the value provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 1136 of file jit.matrix.c.

References A_SYM, t_atom::a_w, jit_atom_getcharfix(), jit_atom_getfloat(), jit_atom_getlong(), jit_atom_getobj(), jit_atom_getsym(), and word::w_sym.

Referenced by jit_matrix_setcell1d(), jit_matrix_setcell2d(), jit_matrix_setcell3d(), jit_matrix_setplane1d(), jit_matrix_setplane2d(), and jit_matrix_setplane3d().

Here is the call graph for this function:

t_jit_err jit_matrix_setcell1d ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Sets cell at index to the value provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 920 of file jit.matrix.c.

References jit_atom_getlong(), jit_atom_setlong(), jit_atom_setsym(), and jit_matrix_setcell().

Here is the call graph for this function:

t_jit_err jit_matrix_setcell2d ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Sets cell at index to the value provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 954 of file jit.matrix.c.

References jit_atom_getlong(), jit_atom_setlong(), jit_atom_setsym(), and jit_matrix_setcell().

Here is the call graph for this function:

t_jit_err jit_matrix_setcell3d ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Sets cell at index to the value provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 989 of file jit.matrix.c.

References jit_atom_getlong(), jit_atom_setlong(), jit_atom_setsym(), and jit_matrix_setcell().

Here is the call graph for this function:

t_jit_err jit_matrix_setinfo ( t_jit_matrix *  x,
t_jit_matrix_info *  info
)

Sets all attributes according to the t_jit_matrix_info struct provided.

Parameters:
x t_jit_matrix object pointer
info t_jit_matrix_info pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 623 of file jit.matrix.c.

References jit_object_notify().

Referenced by jit_matrix_setinfo_ex().

Here is the call graph for this function:

t_jit_err jit_matrix_setinfo_ex ( t_jit_matrix *  x,
t_jit_matrix_info *  info
)

Sets all attributes according to the t_jit_matrix_info struct provided (including data flags).

Parameters:
x t_jit_matrix object pointer
info t_jit_matrix_info pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 646 of file jit.matrix.c.

References t_jit_matrix_info::flags, JIT_MATRIX_DATA_REFERENCE, jit_matrix_setinfo(), jit_object_notify(), and t_jit_matrix_info::size.

Here is the call graph for this function:

t_jit_err jit_matrix_setplane1d ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Sets plane of cell at index to the value provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 1025 of file jit.matrix.c.

References jit_atom_getlong(), jit_atom_setlong(), jit_atom_setsym(), and jit_matrix_setcell().

Here is the call graph for this function:

t_jit_err jit_matrix_setplane2d ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Sets plane of cell at index to the value provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 1061 of file jit.matrix.c.

References jit_atom_getlong(), jit_atom_setlong(), jit_atom_setsym(), and jit_matrix_setcell().

Here is the call graph for this function:

t_jit_err jit_matrix_setplane3d ( t_jit_matrix *  x,
t_symbol *  s,
long  argc,
t_atom *  argv
)

Sets plane of cell at index to the value provided.

See Jitter user documentation for more information.

Parameters:
x t_jit_matrix object pointer
s message symbol pointer
argc argument count
argv argument vector
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 1098 of file jit.matrix.c.

References jit_atom_getlong(), jit_atom_setlong(), jit_atom_setsym(), and jit_matrix_setcell().

Here is the call graph for this function:

t_jit_err jit_matrix_togworld ( t_jit_matrix *  x,
GWorldPtr  gp,
t_gworld_conv_info *  gcinfo
)

Copies Jitter matrix data to GWorld data.

Parameters:
x t_jit_matrix object pointer
gp gworld pointer
gcinfo conversion information pointer
Returns:
t_jit_err error code
Warning:
This function is not exported, but is provided for reference when calling via jit_object_method on an intance of t_jit_matrix.

Definition at line 1505 of file jit.matrix.c.

References CLIP, JIT_MATRIX_CONVERT_DSTDIM, JIT_MATRIX_CONVERT_INTERP, JIT_MATRIX_CONVERT_SRCDIM, and MIN.

Copyright © 2008, Cycling '74
